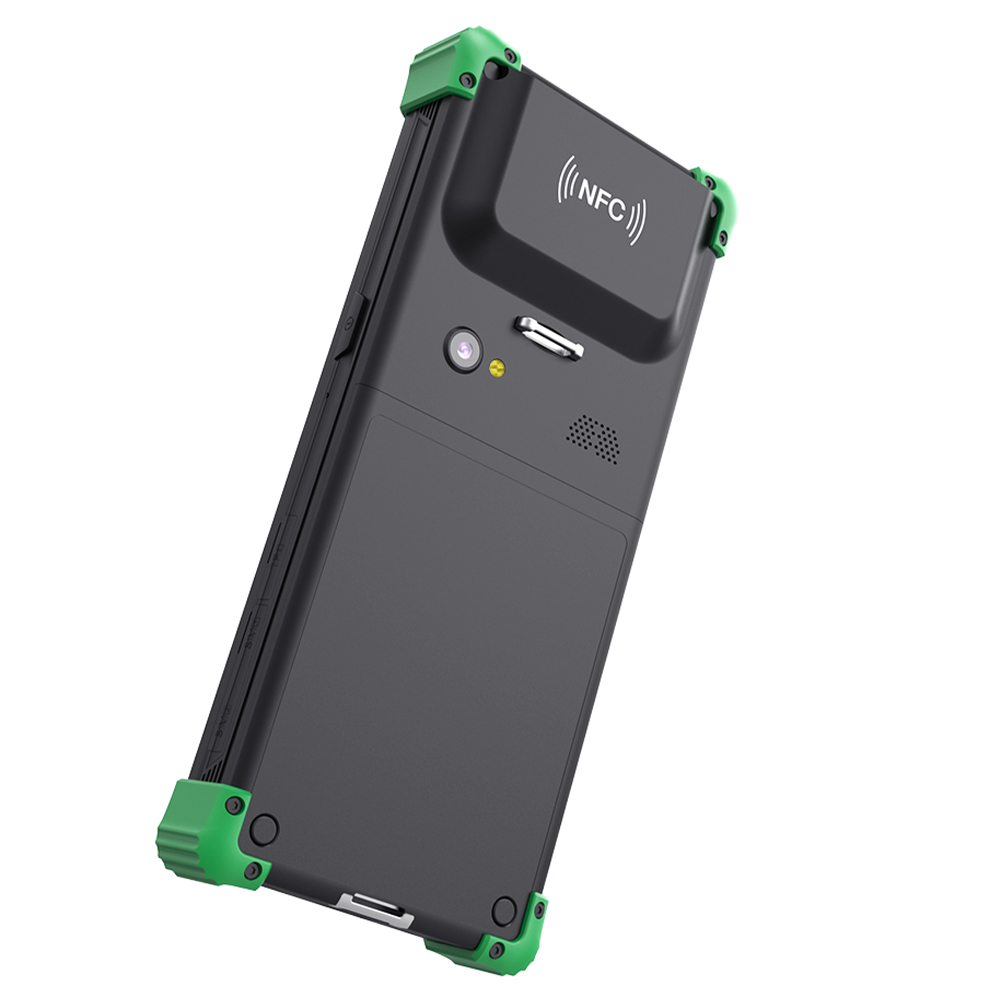

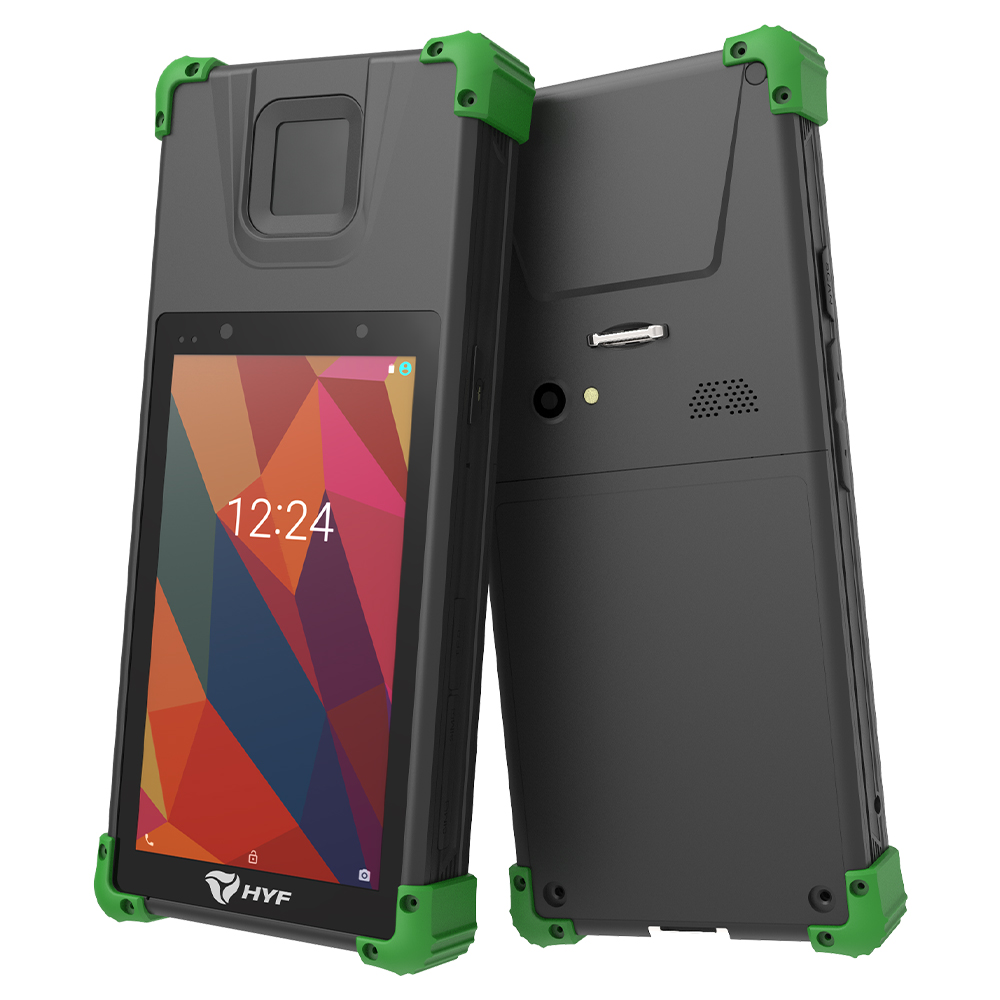

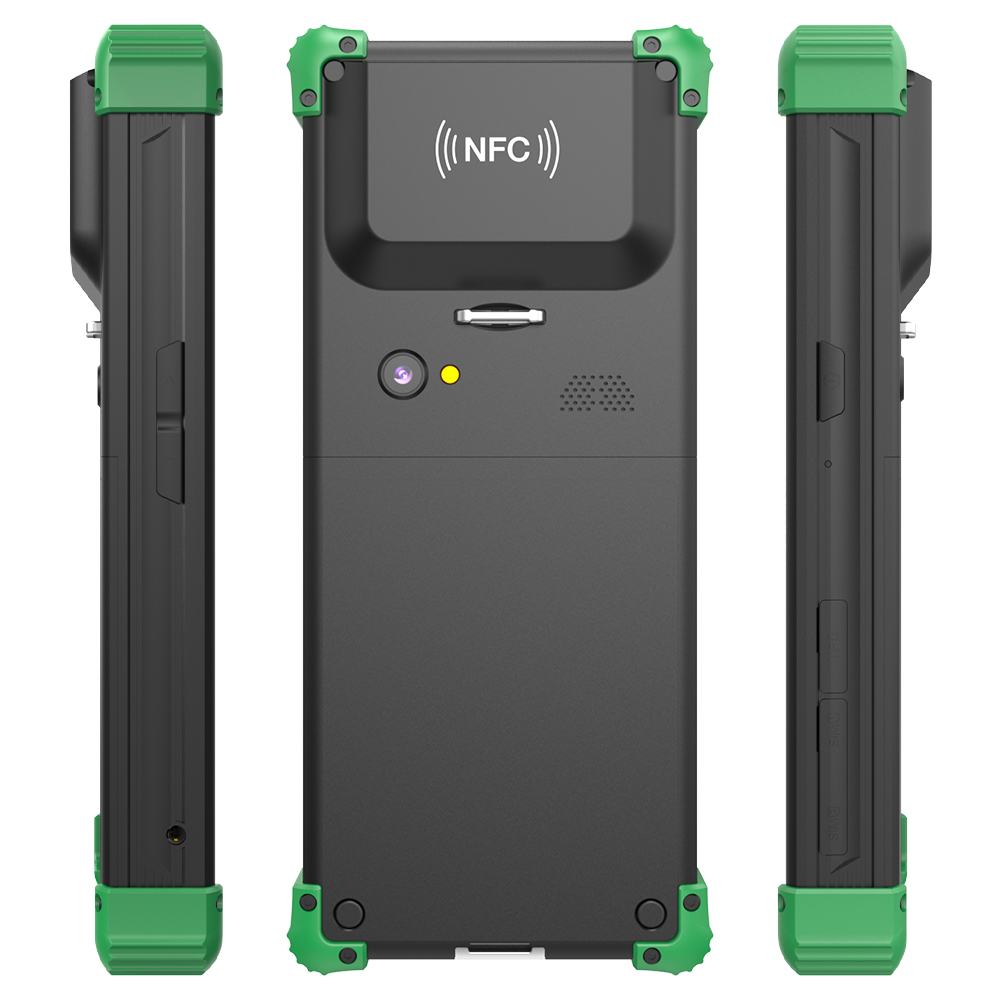

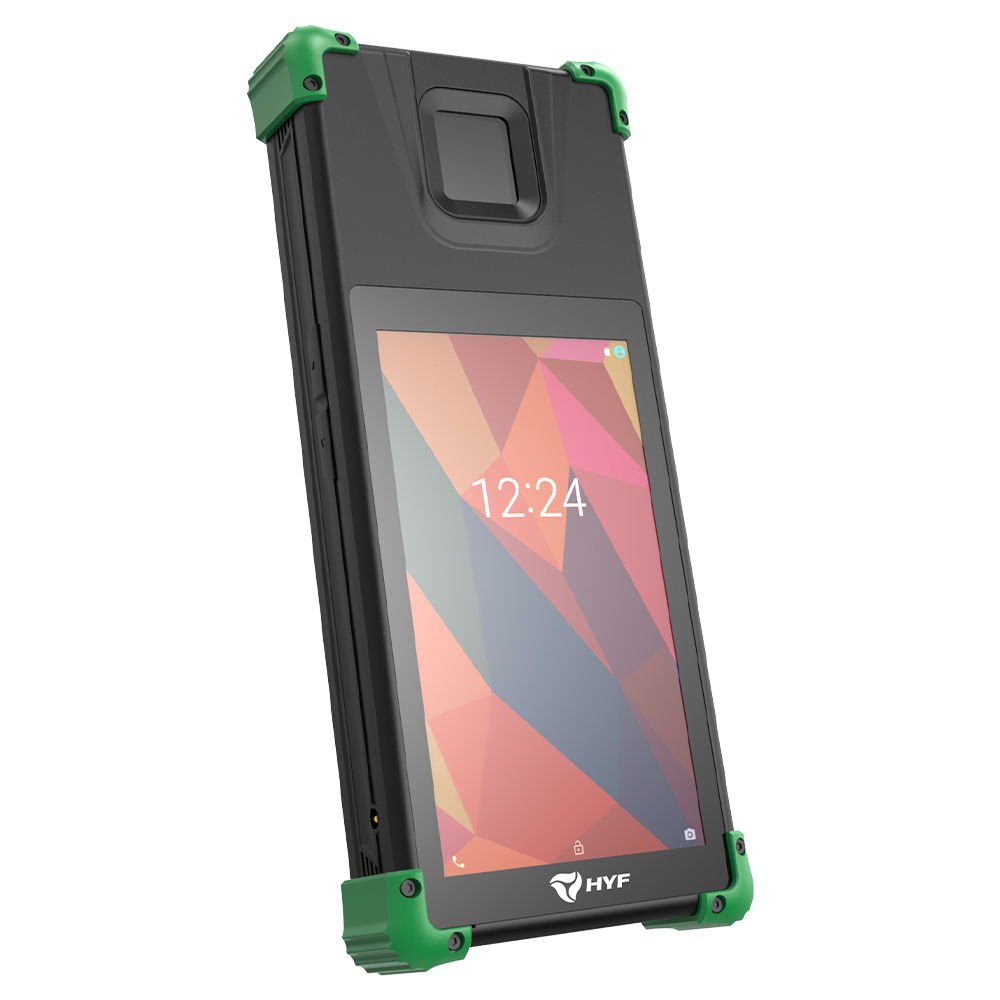

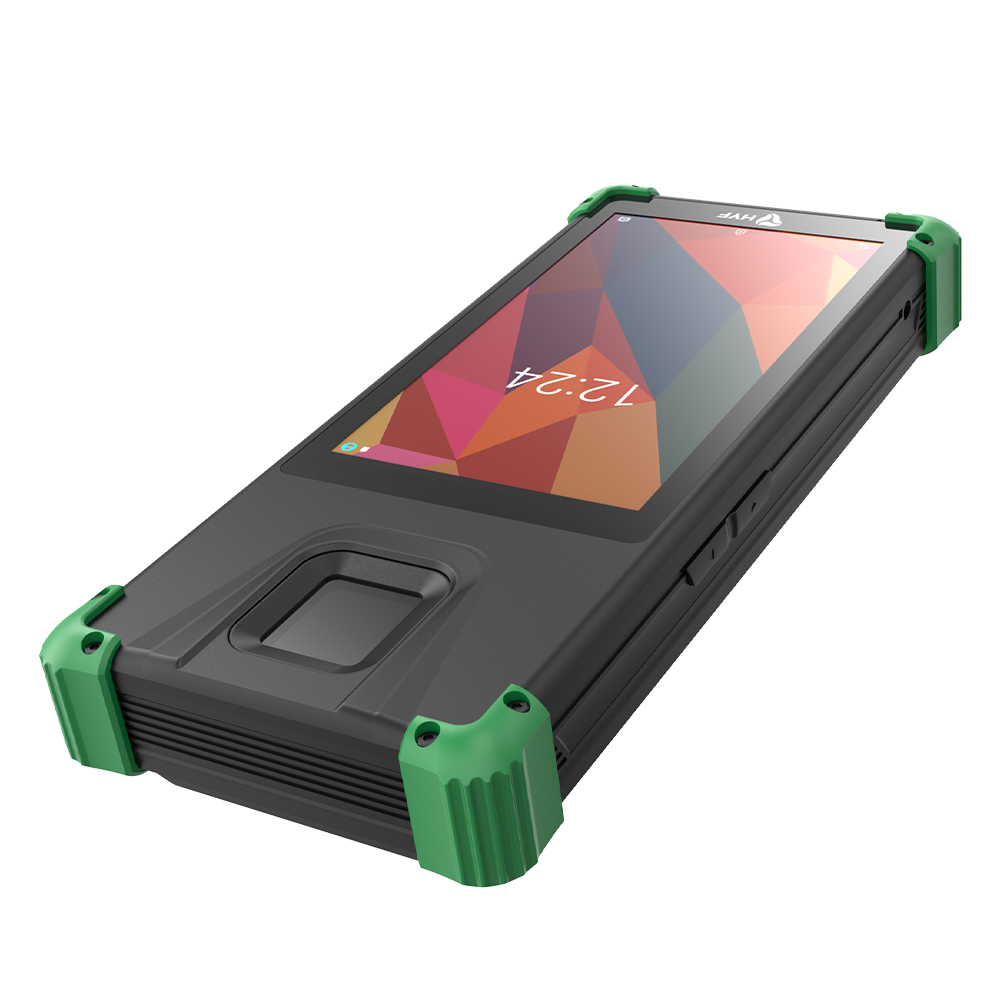

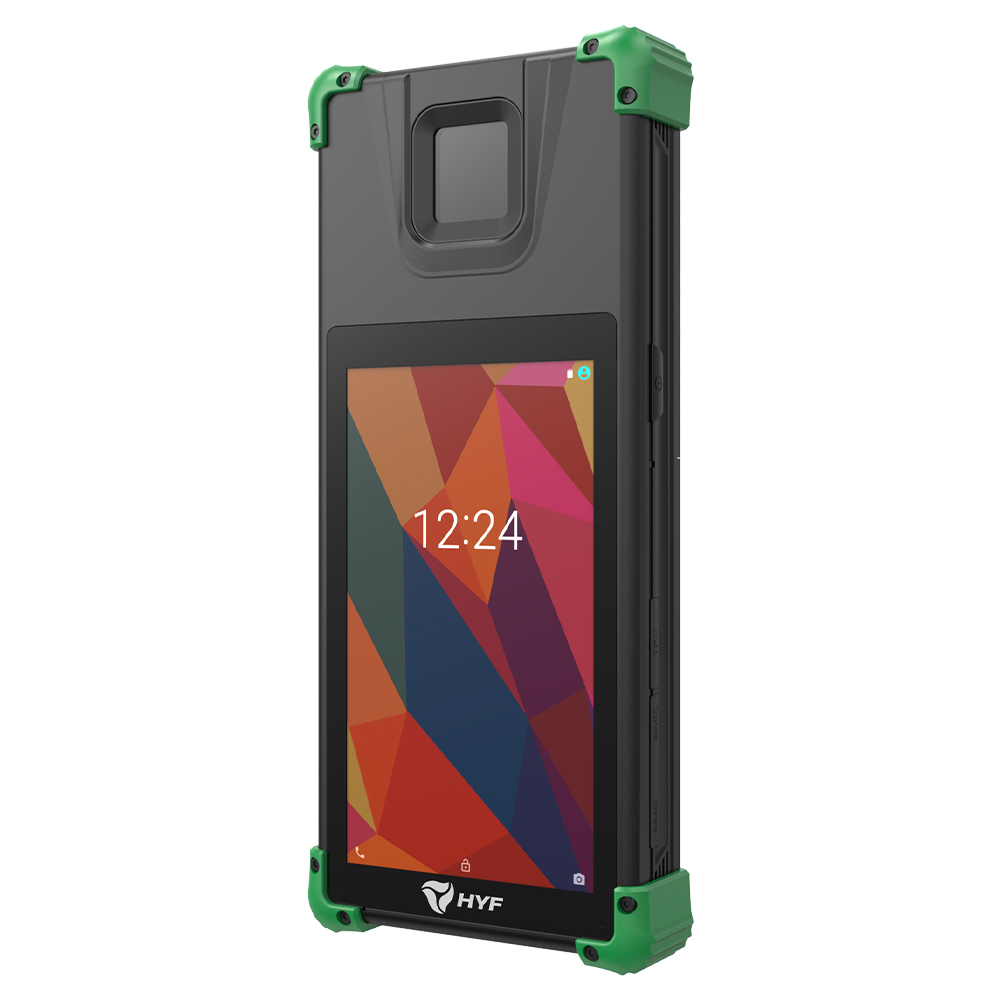

BH502

Rugged Handheld Terminal

Model: BH502 OS: Android 10.0 /13.0
LCD: 5 inch,1280*720  IPS
Type of Touch Panel: G+F&G+G Capacitive ouch panel
CPU: Quad core  /Octa core
RAM: 2GB /4GB/6GB
Nand Flash: 16GB/32GB /64GB/128GB
Camera: Front 2Mp/5Mp, Rear 5Mp/8Mp /13MP
Battery: 4000mAH/6000mAH
Fingerprint scanner: Fingerprint reader  Morpho CBM E3,FBI PIV IQS / ISO 19794-4 2011 (Annex. B)
                                        Fingerprint reader HYF PA00I,Optical 256x360,FAP20 ,FBI
                                        Optical Suprema Slim 2,FBI PIV FAP20
                                        Optical Nitegen
                                        HID fingerprint reader TCS2,Capacitive A288, Capacitive 208*288
                                        HID fingerprint reader TCS1,Capacitive A360, Capacitive 256*360
Certifications: FBI,FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction: ISO 19794-2/4, WSQ, ANSI 378, etc.
NFC: 13.56MHz,ISO14443A/B
Facial recognition: Optional
1D scan or 2D scan: Optional
Contact card reader: Optional
Google service: GMS Certified
Google Zero-Touch: support
Google Map: suppor
